Silicon Carbide Ceramic Components for Severe Wear Applications
Product Description
In industries where abrasion, high temperature, and corrosion occur simultaneously, traditional metal components often fail quickly. Silicon carbide ceramic components are increasingly used to replace metal parts due to their exceptional hardness, wear resistance, and thermal stability.
Typical silicon carbide ceramic products include wear-resistant pipes, ceramic nozzles, cyclone liners, elbows, and custom structural components. These products are widely used in slurry conveying, dust removal, spray cooling, and material handling systems.
Why Choose Silicon Carbide Ceramic Components
From the customer’s perspective, the biggest challenge is reducing maintenance and avoiding production shutdowns. Silicon carbide offers a practical solution.
Key benefits
Ultra-high hardness up to Mohs 9.2
Excellent wear resistance in abrasive slurry
Long-term operating temperature up to 1200°C
Strong corrosion resistance in chemical environments
Smooth inner surface improves flow efficiency
Longer service life compared with alumina and metal
Typical Silicon Carbide Ceramic Products
Silicon carbide ceramic pipe
Used for slurry conveying and pneumatic conveying systems where severe abrasion occurs.
Silicon carbide ceramic nozzle
Suitable for spray cooling, desulfurization, and sandblasting applications requiring stable atomization.
Silicon carbide-lined elbow
Designed for pipeline turning sections where wear is most severe.
Silicon carbide cyclone liner
Provides long service life in mineral separation and classification equipment.
Core Advantages of Alumina Nozzles
High Cost-Effectiveness: At only 30%-60% of the price of silicon carbide ceramic nozzles, it offers the best cost-effectiveness for medium-to-low-wear, ambient-temperature conditions such as cement production line dust removal and port spraying. - Good Formability: It can be manufactured into complex, custom-shaped spray structures, such as fan, cone, and spiral spray patterns, to suit diverse atomization needs.
Established Application System: With mature production processes and high-quality stability, it has established comprehensive selection and application solutions for small and medium-sized industrial applications.
Comparative analysis of core features and advantages
| Performance Dimensions |
Silicon Carbide Ceramic Nozzle |
Aluminum Oxide Nozzle |
Advantages |
| Mohs hardness |
9.2 (second only to diamond) |
8.5-9.0 (increases with increasing aluminum oxide content) |
Silicon carbide is harder and more scratch-resistant. |
| Wear Resistance (Relative Value) |
1.0 (Baseline Value) |
0.4-0.7 (92% Aluminum Oxide: 0.4, 99% Aluminum Oxide: 0.7) |
Silicon carbide has significantly better wear resistance than aluminum oxide and a longer service life. |
| High-temperature resistance |
Long-term operating temperature: 1200°C, short-term operating temperature: 1600°C |
Long-term operating temperature: 800-1100°C (the higher the content, the higher the temperature). |
Long-term operating temperature: 800-1100°C (the higher the content, the higher the temperature). |
| Corrosion Resistance |
Resistant to strong acids, strong bases, and molten metals, but not resistant to hydrofluoric acid. |
Resistant to neutral and weak acids and bases, but susceptible to damage in highly corrosive environments. |
Silicon carbide offers comprehensive corrosion resistance and is suitable for complex corrosion conditions. |
| Impact Resistance |
Flexural Strength 400-500 MPa, Medium Toughness |
Flexural Strength 300-450 MPa (Toughness Slightly Lower with High Alumina Content) |
Silicon Carbide Has Slightly Better Impact Resistance and Greater Resistance to Operating Vibration |
| Atomization Performance |
Flow channel smoothness Ra ≤ 0.8 μm, atomization uniformity ≥ 95% |
Flow channel smoothness Ra ≤ 1.2 μm, atomization uniformity 90%-95% |
Silicon carbide atomization is more uniform, resulting in higher fluid delivery efficiency |
Customization Capability
Silicon carbide ceramic parts can be customized according to working conditions: Pipe diameter, Liner thickness, Elbow angle
Nozzle spray pattern, Special-shaped wear parts
Why Choose Us?
Choosing IBENO, you get more than just a product; you get a complete, reliable solution.
Advanced Production Technology: We utilize isostatic pressing and high-temperature sintering to ensure a uniform, dense, and defect-free internal structure, resulting in optimal mechanical properties and an exceptionally long service life.

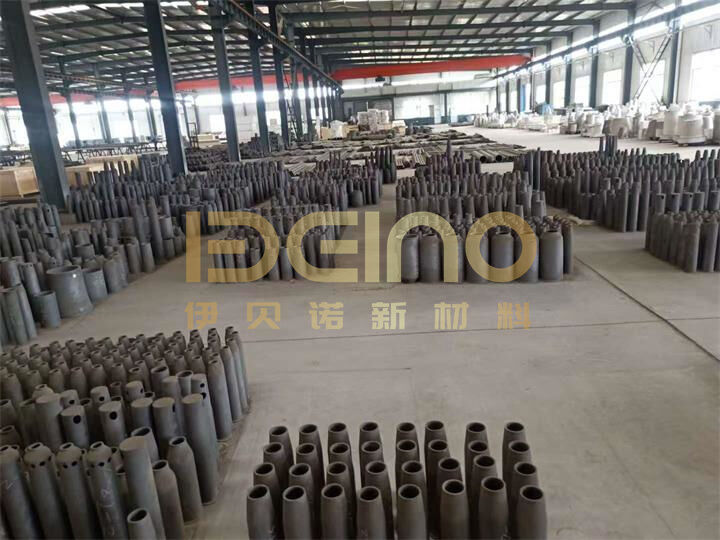

Excellent Production Equipment: We utilize fully automatic powder compacting machines, high-temperature tunnel kilns, and precision CNC grinders to ensure dimensional accuracy and consistent performance from batch to batch.
Strict Quality Inspection: We implement rigorous QC procedures from raw materials to finished product. Our products are tested by internationally recognized organizations such as SGS, and we provide detailed wear and corrosion resistance test reports.
Perfect Packaging and Shipping: We use shock-absorbing foam and customized grid packaging to ensure the safety of fragile ceramic products during long-distance sea and land transportation, ensuring on-time delivery to customers worldwide.
FAQ
Q1: When should I choose silicon carbide instead of alumina ceramic?
A1: If your application involves high-speed abrasive particles, high temperature above 1000°C, or strong chemical corrosion, silicon carbide is usually the better choice. It offers longer service life and more stable performance in harsh conditions.
Q2: What is the service life of silicon carbide ceramic pipes?
A2: Service life depends on material type and working conditions. In most slurry conveying systems, silicon carbide ceramic pipes typically last 1.5–3 times longer than alumina ceramic liners and significantly longer than steel pipes.
Q3: Can silicon carbide ceramic components handle high temperatures?
A3: Yes. Silicon carbide ceramic components can operate continuously at temperatures up to 1200°C, making them suitable for spray cooling, thermal power, and high-temperature conveying applications.
Q4: Are silicon carbide ceramic pipes difficult to install?
A4:No. They can be manufactured with standard flanges, threaded connections, or welded steel shells. Installation is similar to conventional industrial pipelines.
Q5: Which industries commonly use silicon carbide ceramic liners?
A5:Silicon carbide liners are widely used in cement plants, mining, coal handling, thermal power plants, chemical processing, and steel industries where severe wear occurs.
Q6:Can you provide custom silicon carbide ceramic parts?
A6:Yes. Custom shapes such as ceramic elbows, cyclone liners, spray nozzles, and wear plates can be produced based on drawings or working conditions.
Q7: Is silicon carbide more expensive than alumina?
A7:Yes, the initial cost is higher. However, due to longer service life and reduced downtime, silicon carbide often results in lower total operating cost.
Q8: How do I choose the right thickness for the silicon carbide liner?
A8:The liner thickness depends on particle size, velocity, and operating time. Typically, a 10–25 mm thickness is recommended for heavy wear applications.
